Content:
Network ArchitectureIu Interface
Iur Interface
Iub Interface
Uu Interface
Service Data Processing Flow
Terminology of UMTS RNS Network
n UTRAN: UMTS Terrestrial Radio Access Network
n RNS: Radio Network Subsystem
n RNC: Radio Network Controller
n UE: User Equipment
n Uu:
Radio Interface
n Iub: The
interface between NodeB and RNC
n Iur: The
interface between RNCs
n Iu_CS:
between RNC and CS domain
n Iu_PS:between
RNC and PS domain
n Iu_BC:for BroadCast
domain
Universal model of the UTRAN interfaces
n Horizontal: UTRAN falls into 2 layers
lRadio
Network Layer (RNL)
lTransport
Network Layer (TNL)
n Vertical:
UTRAN falls into 4 planes
l
Control plane
l
User plane
l TNL
control plane
l TNL
user plane
n In R99 and R4, the ATM technology is adopted
at the transport network layer, while
R5, IP transmission is introduced.
Iu interface Functions
n RAB management
lRAB
setup, modification and release
lmapping
of RAB characteristics to the Uu bearer
lmapping
of RAB characteristics to the Iu transmission bearer
lRAB
queuing, preemption and priority
n Iu
radio resource management
lradio
resource acceptance control
n Iu
connection management
lIu
signaling connection management
n Iu-UP
(RNL) management
lIu-UP
frame protocol mode selection and protocol initialization
n Mobility management
n Security management
n Service and network access
n Paging coordination
Stream Control Transmission Protocol(SCTP)
n SCTP is a reliable datagram transfer protocol
based on an unreliable transfer protocol such as UDP.
n SCTP End Point is a logical entity, logical
datagram sender and receiver. Each SCTP End Point is only identified by IP
address and port number, similar to TCP.
n SCTP Association is a logical association or
channel established between two SCTP End Points. Client/Server mode is adopted.
MTP3-User Adaptation Layer Protocol(M3UA)
n M3UA (MTP3-User Adaptation Layer) protocol
conducts conversion between SPCs and IP addresses. It is used for the SS7
signaling to transfer between the Softswitch and the Signaling Gateway(SG). It supports
to transfer the MTP3 user messages over the IP network, including ISUP, TUP,
and SCCP messages.
Signaling connection control protocol SCCP
n RNC, SCCP protocol is mainly used to
transport signaling message by Iu/Iur interface. The client is RANAP and
RNSAP.
n It offers the connectionless or
connection-oriented services for its client. The SCCP also offers the
segmentation and reassembly functions.
Iur interface Functions
n Iur
interface has the following functions:
n Inter-RNC mobility management
lSRNC
relocation, inter-RNC cell and UTRAN registration area update, inter-RNC
paging, and protocol error report.
n Dedicated channel data transmission
lused
to transmit dedicated channel data between two RNCs.
n Common channel data transmission
lsetup
and release of the transmission connection needed in common channel data stream
transmission of the Iur interface,
n Global resource management
ltransmission
of inter-RNC cell measurement information.
ltransmission
of inter-RNC Node B timing information.
Iur Flow Overview
n Radio Link Management
n Physical Channel Reconfiguration
n Radio Link Supervision
n Compressed Mode Control
n Measurements on Dedicated Resources
n DL Power Drifting Correction
n CCCH Signaling Transfer
n Paging
n Common Transport Channel Resources Management
n Relocation Execution
Iub Interface Stack Structure
Iub interface Functions
n Management of the Iub
interface transmission resources.
n Logic operation maintenance of Node B,
including:
lthe
cell configuration management
lradio
network performance measurement
lcommon
transmission channel management
lradio
resource management
n Transmission of application-related operation
& maintenance data.
n System information management.
n Channel traffic management.
n Timing and synchronization management,
including:
lnode
synchronization
ltransmission
channel synchronization between the RNC and Node B
Iub Flow Overview
n Click to edit master text style
n System Information Management
n Configuration Alignment
n Measurements
n Radio Link Management
n Radio Link Supervision
n Compressed Mode Control
n DL Power Drifting Correction
Uu Interface Stack Structure
Uu Interface Stack Structure
n Physical Layer Protocol
lprovides the MAC sublayer
with transmission channel services.
n MAC Protocol (Media Access Control)
lprovides the RLC sublayer
with logic channel services.
n RLC Protocol (Radio Link Control)
lon the control plane, provides
the RRC sublayer
with signaling radio bearer services.
lon the user plane, provides service radio bearer services
together with the PDCP sublayer.
n PDCP (Packet data convergence protocol)
ladapt different types of network
layer protocols to the radio interface.
lonly exists in the packet domain
n BMC (Broadcast main control)
ltransfer broadcast and multicast
information over the radio interface.

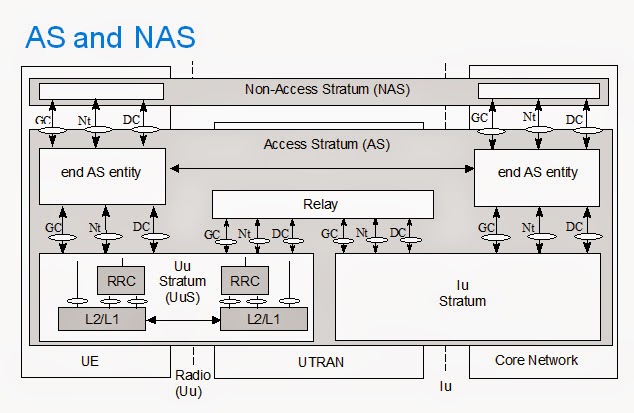

n RRC (Radio resource control)
lProvide
services for the non-access layer, for example, transmitting messages like call
control, session management and mobility management at the control interface.
lSetup,
maintenance and release of an RRC connection between UE and UTRAN.
lSetup,
reconfiguration and release of radio bearer.
lDistribution,
reconfiguration and release of radio resources used in the RRC connection.
lRRC
connection’s mobility function management.
lRequest
for QoS
control.
lUE
measurement report and report control.
lOuter
loop power control, ciphering control, paging.
lInitial
cell selection and reselection in the idle mode.
PDCP Function
n User Data Transport: Transmit NAS data to RLC
layer or reverse.
n IP Head Compression: Compress or decompress
the IP data in the Transport entities and receive entities. Different network
layer has different compression algorithm.
n Sequence Number Maintenance: If RB supports
lossless SRNS Reselection, the Sequence Number can be kept synchronized between
UE and RNC.
BMC Services and Function
n BMC services adopt TM or UM to provide
Broadcast/Multicast services for the public users
n The functions of BMC include cell broadcast
message depository, service flow monitor, radio resource request for cell
broadcast, BMC message scheduling, sending and receiving cell broadcast message
and so on.
BMC Sub-layer Structure

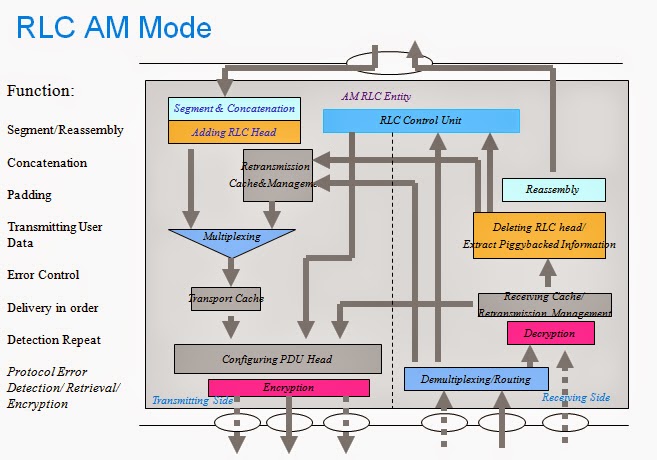

RLC Layer Work Modes
n RLC provides the services for the upper
layer: RLC connection setup/release, TM data Transport, UM data Transport, AM
data Transport, unrecoverable error notify and so on.
n The functions for RLC include Segment,
Reassemble, Concatenation, Padding added, Data Transport, Error Detect, PDU
delivery in order, Detection Repeat, Flow Control, Sequence Number Detection,
Protocol Error Detection/ Retrieval/ Encryption/ Suspend function.
n RLC work modes: TM, UM,AM. Different work
mode is adopted according to the QoS
requirement of different services; for the signaling, the work mode also
depends on the significance.
MAC-Some Transport Channel Principles
n Transport Block
lThe basic switching unit between
L1 and MAC layer
n Transport Block Set
lA Set of Transport Blocks which
are Transmitted in a Transport channel on a certain moment.
n Transport Block Size
lThe bit number of a Transport
Block.
n Transport Block Set Size
lThe bit number of a Transport
Block Set.
n Transport Time Interval
lTransport Time Interval is
defined as a time interval for a Transport Block arrived,
and it equals to the time for transporting a
Transport Block on the Physical Layer of
Radio Interface. It is always the gemination of
MIN. interleaving cycle (10ms, Size of
Radio Frame). MAC layer transports a
Transport Block Set to the physical layer
in each TTI.
n Transport Format
lTransport Format is defined as
the format of a Transport Block Set which is
transported on a Transport
channel. The format is provided for MAC layer by L1 (or
MAC layer provides for
L1). The Transport Format is consisted of two parts:
dynamical part and static
part.
MAC-Some Transport Channel Principles
n Transport Format Set
lTransport Format Set is defined
as a set of Transport Format on a Transport
Channel. In side of a Transport Format Set the static part of transport format is the
same. The previous two features of the dynamic part determine the instantaneous bit
rate of the Transport channel.
Channel. In side of a Transport Format Set the static part of transport format is the
same. The previous two features of the dynamic part determine the instantaneous bit
rate of the Transport channel.
n Transport Format Combination
lWhen one or more transport
channels map in L1, for each transport channel, there
should be a sets of Transport Format (Transport Format Set) available. For a certain
time, not all the Format Combination is appropriate for L1, but only a sub-set, which
is Transport Format Combination.
should be a sets of Transport Format (Transport Format Set) available. For a certain
time, not all the Format Combination is appropriate for L1, but only a sub-set, which
is Transport Format Combination.
n Transport Format Combination Set
lTransport Format Combination Set
is defined as a set of Transport Format
Combination of Coded Composite Transport Channel (CCTrCH) .
Combination of Coded Composite Transport Channel (CCTrCH) .
n Transport Format Indicator
lTFI is the specific indicator for
a certain Transport Format among the
Transport
Format Set. It is used between L1 and MAC layer, when they exchange a transport
block set.
Format Set. It is used between L1 and MAC layer, when they exchange a transport
block set.
n Transport Format Combination Indicator
lTFCI is a indicator of the
current Transport Format Combination.
The Services Provided by L1 and Timing Operation
n The Physical Layer provides Data Transport
Services for the upper layer, which are implemented by MAC sub-layer through
Transport Channel.
lTransport
Format (or Transport Format Set) defines the feature of the transport channel,
meanwhile, it also indicates the processing on the transport channel by
physical layer, such as convolutional encoding and interleaving,
rate match required by the services and so on.
n The operation on the physical layer is
strictly according to the timing of L1 Radio frame. And for every 10ms (or
multiple times of 10ms) to generate a transport block.
Physical Layer Function
n FEC encoding/decoding of transport channel
n To provide measurement and indicator for the
upper layer (such as FER, SIR,
Interference Power, Transport Power and so on)
Interference Power, Transport Power and so on)
n Macro Diversity distribution/ Combination and
soft handover implementation
n Error Detection of transport channel
n Transport Channel multiplexing, Coding
Combination Transport Channel demultiplexing
n Rate Matching
n To map Coding Combination Transport Channel
to physical channel
n Physical channel modulation/Frequency
Spreading and Demodulation/Frequency De-spreading
n Frequency and Timing (Chip, Bit, Slot, Frame)
synchronization
n Close loop power control
n Physical channel power weight and combination
n RF Processing
Radio Network Control-Plane protocol
Finish UMTS Interface Protocol Course!
